Modular Drive System for Skateboards

Buy at mellowboards.com Save Share

Description

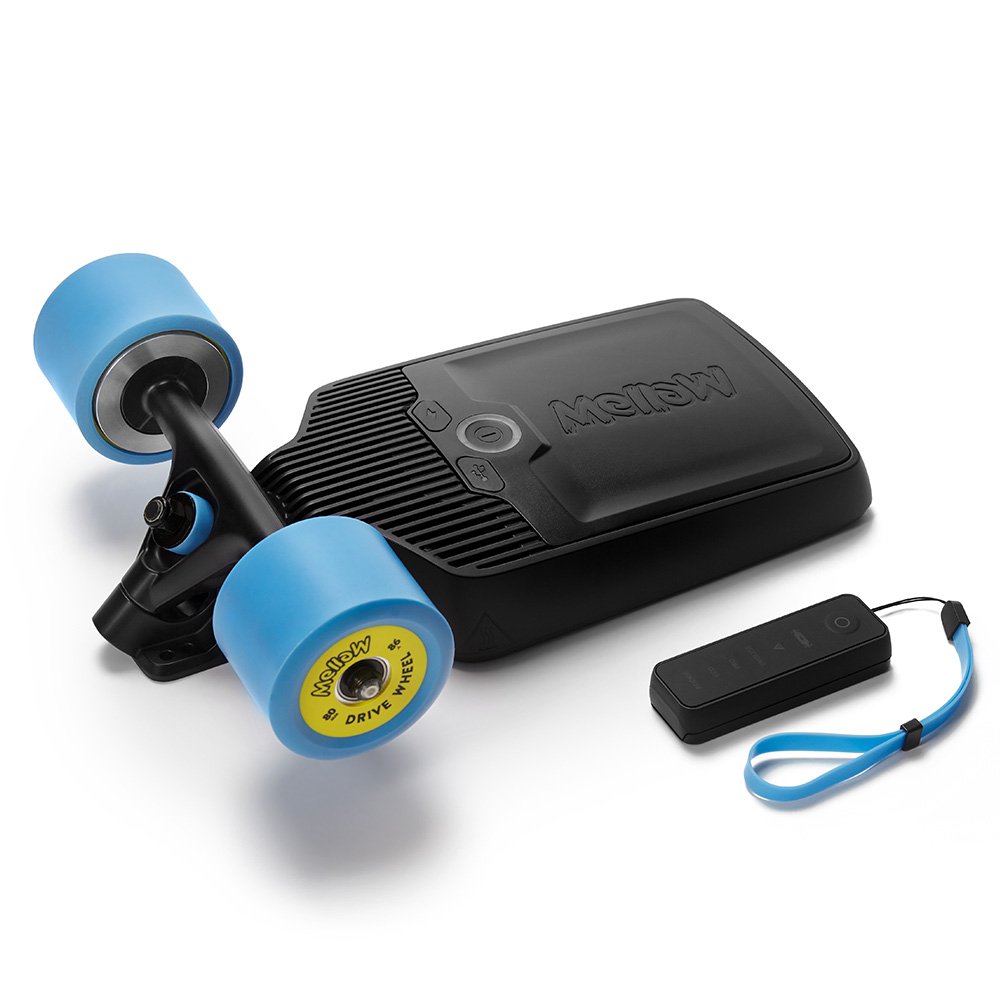

Mellow is an innovative modular drive system for skateboards that can be mounted under any deck. Just unscrew your rear truck and replace it with the Mellow Drive – simple as that.

Properties

Made In
Germany
Dimensions
Size 366 x 174 x 59 mm (14 x 7 x 2.5 inches)
In-Wheel Motors

Two in-wheel motors

Torque 3 Nm each

Topspeed 40 km/h

Maximum Grade 15%

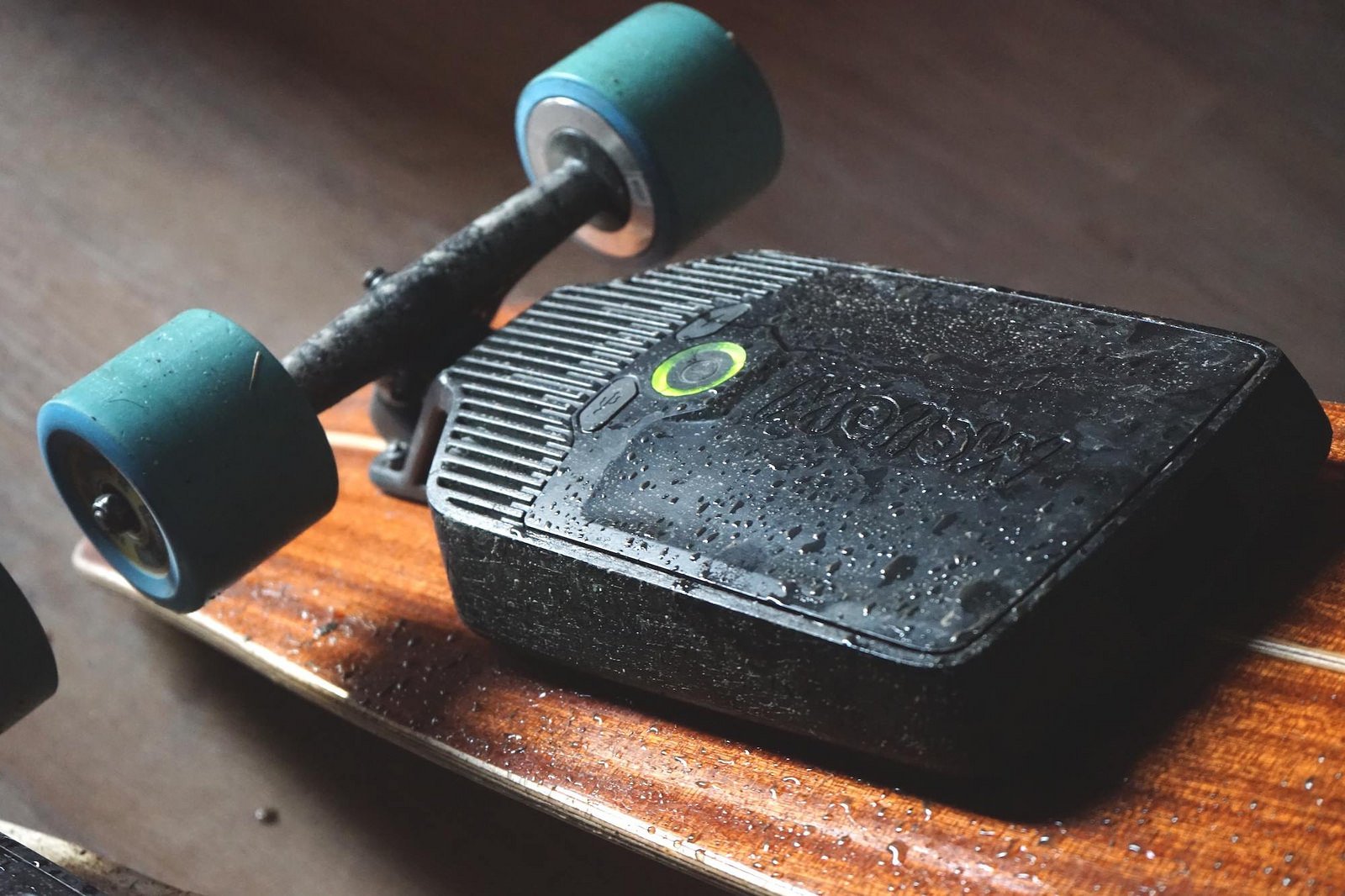

Water and dust proof (IP65)

Freewheeling when you push

Exchangeable Drive wheels

Frame

Solid magnesium singleframe
Standard 6-hole, 180mm truck
Click-in mechanism for the battery

Battery Pack

Range 12km - 15km (7,5 miles-10miles)
Charge 3,5hrs
Fast Charge 45min
Full charge cycles 1.000
Weight 1000
Voltage 99Wh

Lithium ion cells from the Tesla supplier
Battery Management System
Swappable via click-in mechanism
Certified for airtravel
Water and dust proof (IP65)
Powerbank with USB port

Brakes
Mellow has a dual braking system that #1 regenerates your battery and #2 still works when you are fully charged. Whereas most of the existing rides switch their brakes off at that point.
Mellow Remote

Custom made for electric skatboarding
Slide control for throttle and brake
Switch between 4 riding modes
LED displaying state of charge
Vibrating alert before discharge

Rubber coated for better grip
Safety wrist strap
Encrypted bluetooth connection
Size 110 x 36 x 23 mm (4.5 x 1.5 x 1 inches)

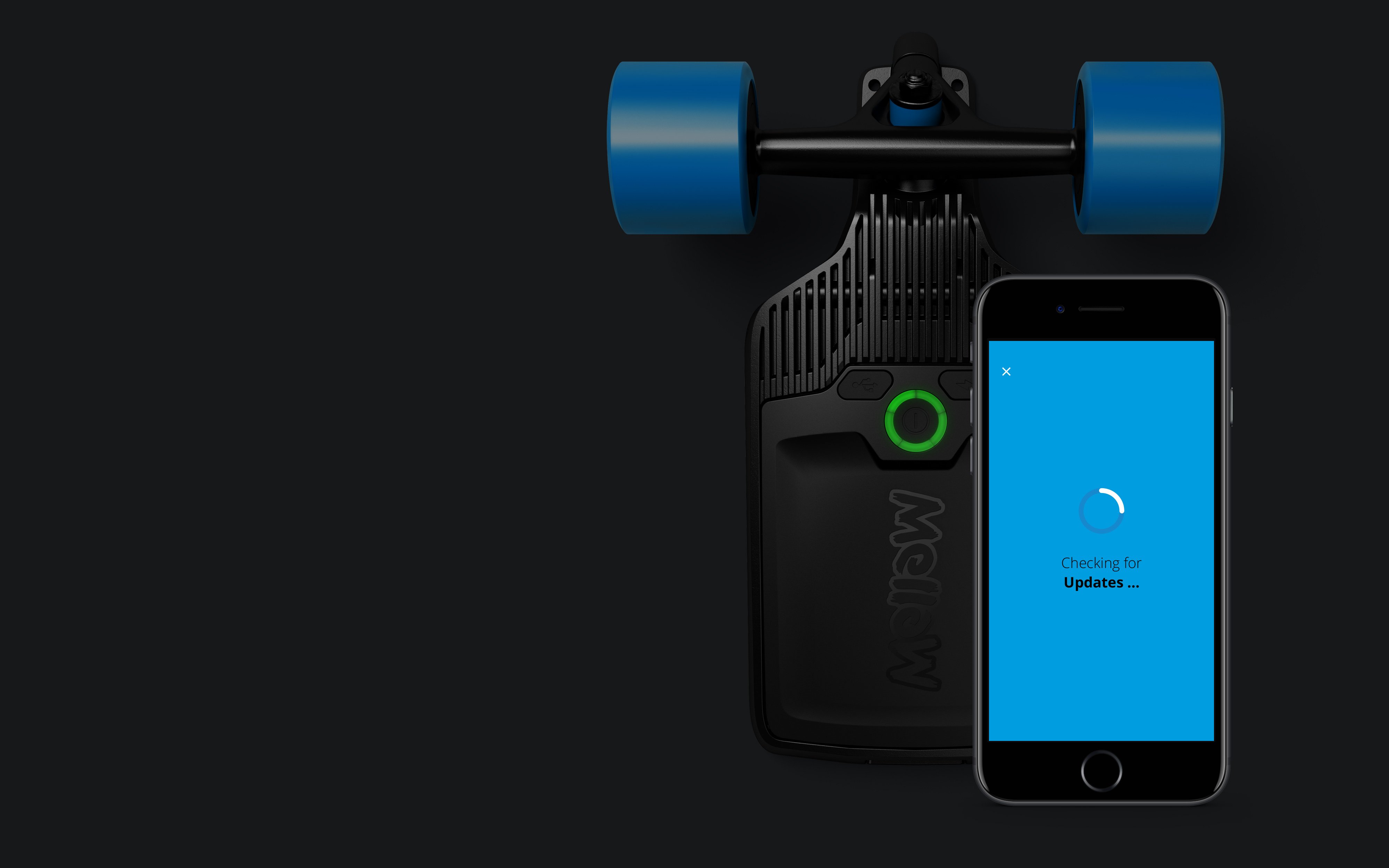

Mellow App

Available for iOS and Android
Monitor your data charge, range, speed and distance
Switch between 4 riding modes
Update your Mellow Drive

Weight
Weight incl. battery 3,9 kg (8.6 lbs)
